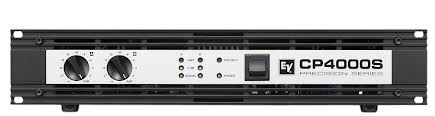

Electro-Voice CPS4000S Stereo Power Amplifier 1500 w.4-ohm Class-H
Electro-Voice CPS4000S Stereo Power Amplifier 1500 w.4-ohm Class-H
|
- ยี่ห้อ : Electro-Voice
- รุ่น : CP4000S
CP4000S 2100 W per channel Class-H power amplifier
| Amplifier Gain |
32 dB |
| Continuous Rated Power (1 kHz, THD 1%) 2Ω |
2100 Watts |
| Continuous Rated Power (1 kHz, THD 1%) 4Ω |
1500 Watts |
| Continuous Rated Power (1 kHz, THD 1%) 8Ω |
900 Watts |
| Continuous Rated Power (20-20 kHz,THD<0,2%) 4Ω |
1200 Watts |
| Continuous Rated Power (20-20 kHz,THD<0,2%) 8Ω |
600 Watts |
| Crosstalk |
< < -80 dB at 1,000 Hz |
| Electronics Type |
Amplifier |
| Frequency Response |
15 - 40,000 Hz |
| Impedance |
2/4/8 Ω |
| Input Impedance (Balanced) |
20 kΩ |
| Input Sensitivity |
+7dBu |
| Intermodulation Distortion (SMPTE) |
< 0.02 % |
| Maximum Bridged Output 4Ω |
4200 Watts |
| Maximum Bridged Output 8Ω |
3000 Watts |
| Network Control (IRIS-Net) |
No |
| Rated output power (*rated load) THD < 0.2%, 20Hz – 20kHz |
1200/600 W 4Ω/8Ω |
| Signal-to-Noise Ratio (A-weighted) |
108 dB |
| Slew Rate |
35 V/µs |
| Topology |
Class-H |
| Total Harmonic Distortion |
< 0.05 % |
- ราคาปกติ : 141,500.00 ฿
- ราคาพิเศษ : 127,350.00 ฿
-
|
| |
|
| |
|
|
|
Power Amplifier - Electrovoice
