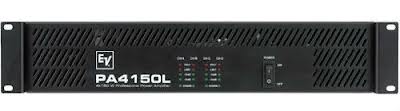

Electro-Voice PA4150L Quad Power Amplifier 150 w.4-ohm
Electro-Voice PA4150L Quad Power Amplifier 150 w.4-ohm
|
- ยี่ห้อ : Electro-Voice
- รุ่น : PA4150L
PA4150L Quad 150 W per channel power amplifier
| Amplifier Gain |
30 dB |
| Continuous Rated Power (1 kHz, THD 1%) 4Ω |
160 Watts |
| Continuous Rated Power (1 kHz, THD 1%) 8Ω |
100 Watts |
| Continuous Rated Power (20-20 kHz,THD<0,2%) 4Ω |
150 Watts |
| Continuous Rated Power (20-20 kHz,THD<0,2%) 8Ω |
75 Watts |
| Crosstalk |
< < -75 dB ref. 1kHz, @ 10% rated output power |
| DIM 30 |
< 0.1 % |
| Frequency Response |
< 10Hz - 40kHz -1dB, ref. 1kHz |
| Impedance |
4/8 Ω |
| Input Impedance (Balanced) |
> 20 kΩ |
| Input Sensitivity |
0 dBu (775mV) @ rated output power or voltage, 1kHz |
| Intermodulation Distortion (SMPTE) |
< 0.1 % |
| Network Control (IRIS-Net) |
No |
| Number of Channels |
4 |
| Rated output power (*rated load) THD < 0.2%, 20Hz – 20kHz |
150/75 W 4Ω/8Ω |
| Rated output power (*rated load) THD < 1%, 1kHz |
160/100 W 4Ω/8Ω |
| Signal-to-Noise Ratio (A-weighted) |
101 dB |
| Slew Rate |
16 V/µs |
| Total Harmonic Distortion |
< 0.1 % |
- ราคาปกติ : 39,500.00 ฿
- ราคาพิเศษ : 35,550.00 ฿
-
|
| |
|
| |
|
|
|
