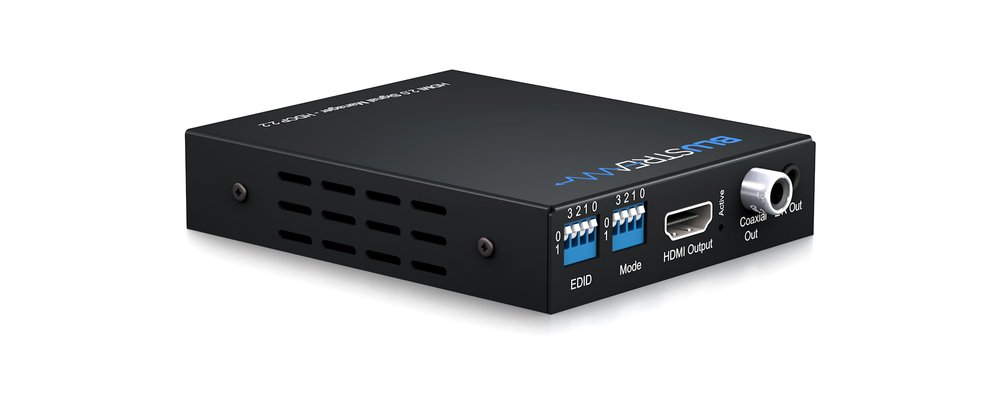

Blustream SM11 HDMI 2.0 HDCP 2.2 Signal Manager with Audio Embedder / De-Embedder & EDID Management
ยี่ห้อ : Blustream
รุ่น : SM11
The SM11 features de-embedding or embedding audio within the HDMI signal path, allowing you to breakout up to 7.1ch audio signals. The SM11 supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4. Specifications

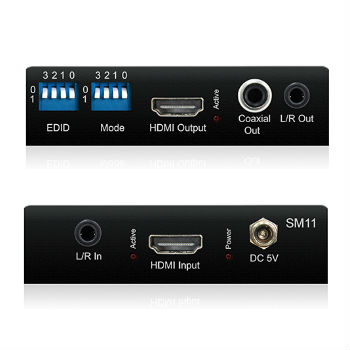

Audio Input Connectors: 1 x analogue left / right audio (3.5mm stereo jack)
Audio Output Connectors: 1 x RCA (SPDIF) & 1 x analogue left / right audio (3.5mm stereo jack)
Video Input Connectors: 1 x HDMI Type A, 19-pin, female
Video Output Connectors: 1 x HDMI Type A, 19-pin, female
Casing Dimensions (W x H x D): 105mm x 23mm x 87mm
Dimensions Including Connections (W x H x D): 114mm x 23mm x 87mm
Shipping Weight: 0.5kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
